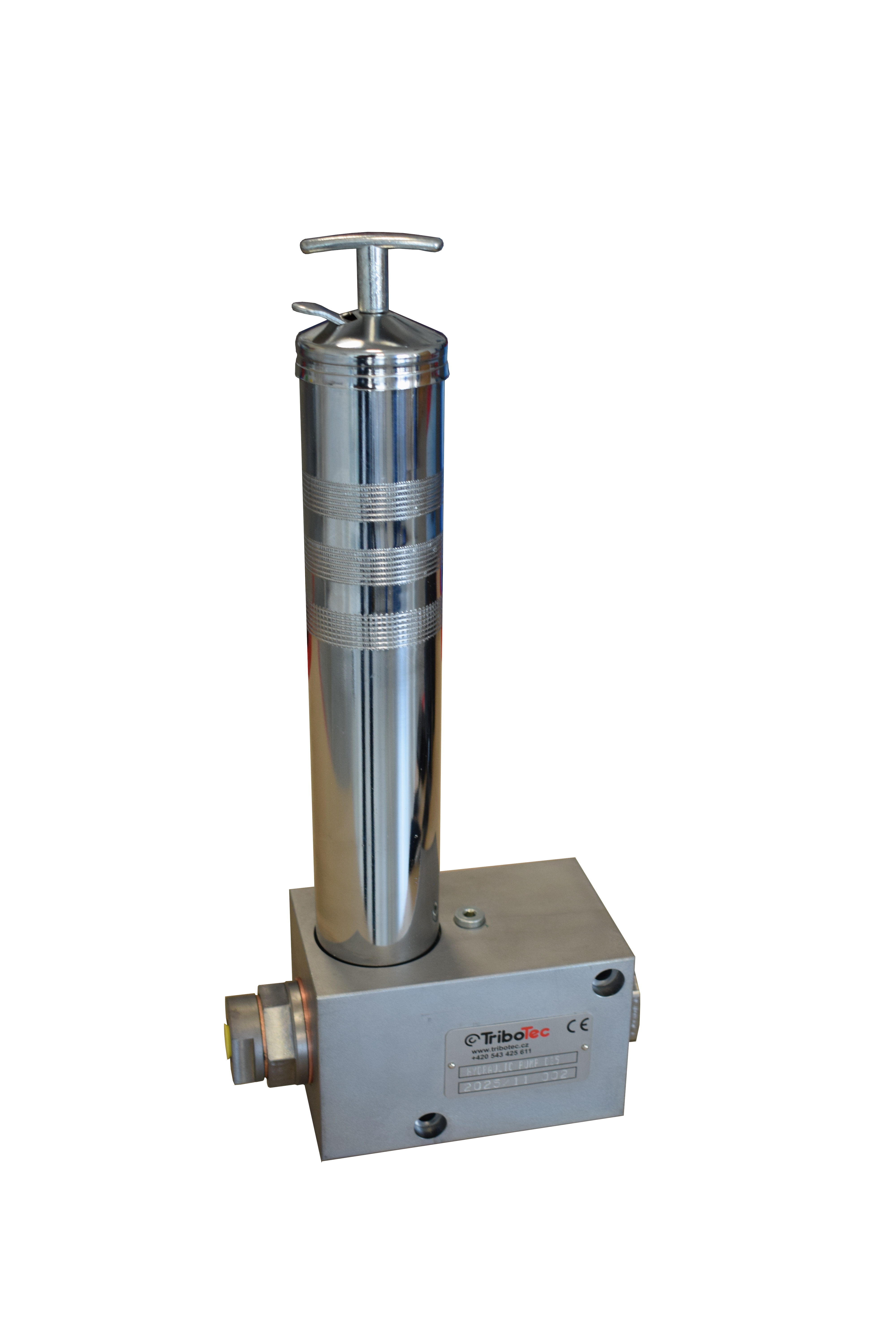

Introducing the D25 hydraulic cartridge pump, a specialized solution designed for applications requiring a large lubrication dose within a short time interval.

The D25 pump is operated by pressure from an external hydraulic circuit. When pressurized oil is supplied, the pump dispenses lubricant into the connected lubrication system. Once the hydraulic pressure is relieved, the working piston automatically returns to its initial position, drawing lubricant into the dosing chamber. The device is ideal for use in combination with progressive distributors and allows for precise dose adjustment according to the specific requirements of the application.

Its robust design, a delivery volume of up to 6 cm³ per stroke, compatibility with standard EURO 400 g cartridges, and clean replacement without the need for special tools make the D25 pump an exceptional solution for demanding lubrication applications where a large amount of lubricant must be delivered reliably in a single working stroke.
